The web development panorama is changing, and Angular is bringing possible changes. Angular is delivering the most significant, efficient, and scalable applications. A challenge in creating applications is the demand for plugin architecture in Angular to extend the features and functionalities of the application without jeopardizing maintainability.
In Angular, a plugin refers to a reusable module of code that extends the functionality of your Angular application. These plugins can provide various features and functionalities, allowing you to avoid writing repetitive code and focus on building the core functionalities of your web app.
Here are some of the key characteristics of Angular plugins:
Modularity: Plugins are self-contained units with components, directives, services, and pipes. This modular design promotes code reusability and easier maintenance.
Extensibility: Angular plugins are designed to be extensible. You can configure them to work seamlessly with your specific application requirements.
Third-Party or Custom Development: You can leverage pre-built plugins from various sources or develop your custom plugins to address specific needs within your Angular application.

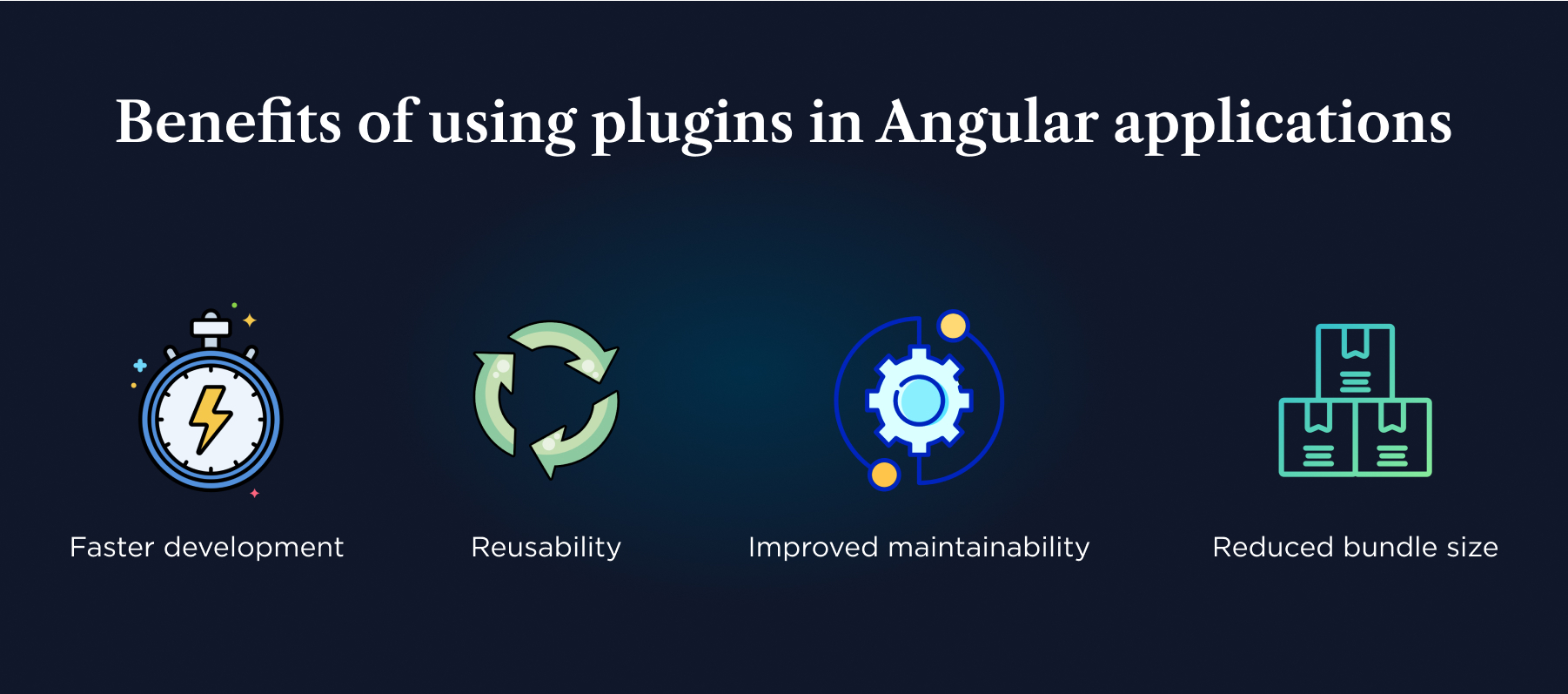

There are multiple advantages to incorporating plugins into your Angular applications:
Faster development
Plugins provide pre-built functionality, saving you time and effort compared to building everything from scratch. You can find plugins for common features like charts, data tables, drag-and-drop functionality, and more.
Reusability
Many plugins are well-tested and maintained by a community of developers. This ensures you're using reliable code and can benefit from ongoing updates and bug fixes.
Improved maintainability
By keeping your core application focused and using plugins for specific features, you can improve the overall maintainability of your codebase. This makes it easier to understand, modify, and debug in the future.
If you only use the features you need from a plugin, you can help keep the size of your application's bundle smaller. This can lead to faster loading times for your users.

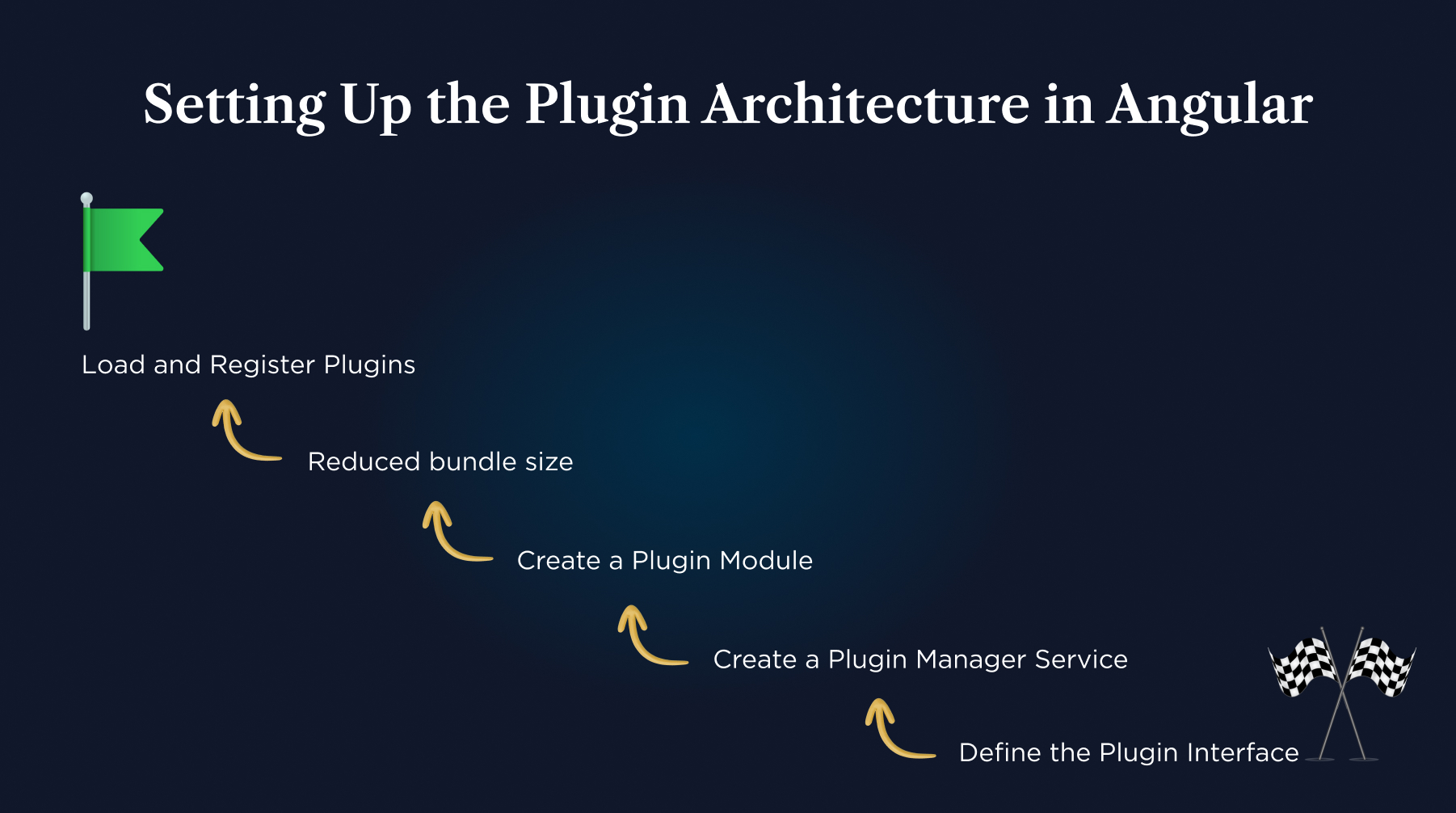

Setting up the plugin architecture can seem like a complicated process, but with the following process, we have simplified it for you.
Step 1: Define the Plugin Interface
Create an interface that outlines the basic structure of a plugin. This interface can inclu de methods for initialization, configuration, and providing components or services.
TypeScript
import { Injectable } from '@angular/core';
export interface Plugin {
id: string;
name: string;
version: string;
initialize(): void;
configure(config: any): void;
getComponents(): any[];
getServices(): any[];
}Step 2: Create a Plugin Manager Service
This service will handle the lifecycle of plugins, including loading, registering, and initializing them.
TypeScript
import { Injectable } from '@angular/core';
import { Plugin } from './plugin.interface';
@Injectable({ providedIn: 'root' })
export class PluginManagerService {
private plugins: Plugin[] = [];
loadPlugin(plugin: Plugin) {
this.plugins.push(plugin);
plugin.initialize();
}
getPlugins(): Plugin[] {
return this.plugins;
}
}
Step 3: Create a Plugin Module
Create a base plugin module that other plugins can extend. This module can provide common functionalities or interfaces.
TypeScript
import { NgModule } from '@angular/core';
@NgModule({
// Shared components or services
})
export class BasePluginModule {}Step 4: Develop Plugins
Create individual plugin modules, each implementing the Plugin interface.
TypeScript
import { NgModule } from '@angular/core';
import { Plugin } from './plugin.interface';
import { BasePluginModule } from './base-plugin.module';
@NgModule({
imports: [BasePluginModule],
// Plugin-specific components and services
})
export class MyPluginModule implements Plugin {
id = 'my-plugin';
name = 'My Plugin';
version = '1.0.0';
initialize() {
// Plugin initialization logic
}
configure(config: any) {
// Plugin configuration logic
}
getComponents() {
// Return plugin components
}
getServices() {
// Return plugin services
}
}Step 5: Load and Register Plugins
In your main application, load and register plugins using the PluginManagerService.
TypeScript
import { Component, OnInit } from '@angular/core';
import { PluginManagerService } from './plugin-manager.service';
import { MyPluginModule } from './my-plugin.module';
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit {
constructor(private pluginManager: PluginManagerService) {}
ngOnInit() {
this.pluginManager.loadPlugin(new MyPluginModule());
// Load other plugins
}
}Create a Feature Module:
Create a separate NgModule for the plugin's features.
Include components, directives, pipes, and services specific to the plugin.
TypeScript
import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { RouterModule } from '@angular/router';
import { PluginComponent } from './plugin.component';
@NgModule({
imports: [
CommonModule,
RouterModule.forChild([
{ path: '', component: PluginComponent }
])
],
declarations: [PluginComponent],
})
export class PluginModule {}Configure Lazy Loading:
In the core application's routing module, use loadChildren to define the lazy-loaded route.
TypeScript
import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
const routes: Routes = [
{ path: 'plugin', loadChildren: () => import('./plugins/my-plugin/plugin.module').then(m => m.PluginModule) }
];
@NgModule({
imports: [RouterModule.forRoot(routes)],
exports: [RouterModule]
})
export class AppRoutingModule {}Dependency Management:
Shared Dependencies
If both the core and plugin share dependencies, ensure they use the same versions to avoid conflicts.
Consider using a package manager like npm or yarn to manage shared dependencies.
Plugin-Specific Dependencies
Isolate plugin dependencies to avoid conflicts with the core.
Use providedIn: 'root' for services shared across the application with caution.
Dependency Injection
Plugin-Specific Services
Provide services within the plugin module to limit their scope.
Use providedIn: 'any' to inject services dynamically.
Shared Services
If you need to share services between the core and plugin, consider creating a shared library or module.
Isolation
Plugin-Specific Styling:
We need to use CSS modules or scoped styles to prevent style conflicts.
Avoid Naming Conflicts:
Use unique names for components, directives, pipes, and services to avoid conflicts.
Consider a Plugin Registry:
Manage plugin metadata and dependencies centrally.
TypeScript
// Core module
import { NgModule } from '@angular/core';
import { SharedService } from './shared.service';
@NgModule({
providers: [SharedService]
})
export class CoreModule {}
// Plugin module
import { NgModule } from '@angular/core';
import { SharedService } from '../core/shared.service';
@NgModule({
providers: [
{ provide: SharedService, useExisting: SharedService } // Inject shared service
]
})
export class PluginModule {}Angular's ComponentFactoryResolver allows us to dynamically create and insert components into the DOM.
TypeScript
import { ComponentFactoryResolver, Injector, ComponentRef } from '@angular/core';
@Component({
// ...
})
export class HostComponent {
constructor(private componentFactoryResolver: ComponentFactoryResolver, private injector: Injector) {}
loadComponent(componentType: any) {
const componentFactory = this.componentFactoryResolver.resolveComponentFactory(componentType);
const componentRef: ComponentRef<any> = this.componentFactoryResolver.createEmbeddedView(componentFactory);
// Append the component to the host element
}
}Event Handling:
Output properties: Plugins can emit events using Angular's Output decorator.
Custom event emitter: Create a custom event emitter service for global event communication.
Observables: Use Observables for asynchronous communication.
TypeScript
import { Output, EventEmitter } from '@angular/core';
export class PluginComponent {
@Output() pluginEvent = new EventEmitter<any>();
emitEvent(data: any) {
this.pluginEvent.emit(data);
}
}Plugin Interface
Define a common interface for plugins to adhere to.
TypeScript
export interface Plugin {
id: string;
name: string;
component: any; // Component to be loaded
config?: any; // Optional configuration
}Plugin Loader Service
TypeScript
import { Injectable } from '@angular/core';
import { ComponentFactoryResolver, Injector } from '@angular/core';
import { Plugin } from './plugin.interface';
@Injectable({ providedIn: 'root' })
export class PluginLoaderService {
private plugins: Plugin[] = [];
constructor(private componentFactoryResolver: ComponentFactoryResolver, private injector: Injector) {}
loadPlugin(plugin: Plugin) {
this.plugins.push(plugin);
// Load the component dynamically
}
unloadPlugin(pluginId: string) {
// Remove the plugin from the list and destroy the component
}
}Plugin Management
Store plugin metadata (ID, name, status) in a central location (e.g., local storage, database).
Provide mechanisms for plugin discovery (e.g., file system, remote repository).
Implement plugin lifecycle management (loading, unloading, updating).
Integrating plugins with a core Angular application while effectively managing dependencies requires careful consideration. The goal is to ensure plugins can access necessary services while preventing conflicts and maintaining isolation.
Define a Plugin Interface
TypeScript
import { Injector } from '@angular/core';
export interface Plugin {
id: string;
name: string;
initialize(injector: Injector): void;
// ... other plugin methods
}Create a Plugin Loader Service
TypeScript
Here is the TypeScript code with extra spaces removed:
```typescript
import { Injectable, Injector } from '@angular/core';
import { Plugin } from './plugin.interface';
@Injectable({ providedIn: 'root' })
export class PluginLoaderService {
private plugins: Plugin[] = [];
constructor(private injector: Injector) {}
loadPlugin(plugin: Plugin) {
plugin.initialize(this.injector);
this.plugins.push(plugin);
}
// ... other plugin management methods
}
```Inject Dependencies in Plugins
TypeScript
import { Injectable, Injector } from '@angular/core';
import { Plugin } from './plugin.interface';
import { SomeCoreService } from '../core/some-core.service';
@Injectable()
export class MyPlugin implements Plugin {
constructor(private coreService: SomeCoreService) {}
initialize(injector: Injector) {
// Access core service and plugin logic
}
}Shared Dependencies:
Use providedIn: 'root' for services shared across the application.
Ensure consistent versions of shared dependencies to avoid conflicts.
Plugin-Specific Dependencies
Provide dependencies within the plugin module.
Avoid using providedIn: 'root' for plugin-specific services.
Inject required dependencies into the plugin's constructor.
Use the provided Injector in the initialize method to access additional dependencies if needed.
Isolation
Use clear naming conventions for plugin components, services, and directives.
Consider using CSS modules or scoped styles to prevent style conflicts.
Avoid direct manipulation of the core application's DOM.
TypeScript
// Core module
import { NgModule } from '@angular/core';
import { SharedService } from './shared.service';
@NgModule({
providers: [SharedService]
})
export class CoreModule {}
// Plugin module
import { NgModule } from '@angular/core';
import { SharedService } from '../core/shared.service';
import { PluginService } from './plugin.service';
@NgModule({
providers: [PluginService] // Plugin-specific service
})
export class PluginModule {}Importing the Plugin
Direct Import: If the plugin is a local library, import it directly into your application's module.
TypeScript
import { PluginModule } from 'path/to/plugin';
@NgModule({
imports: [
// ...
PluginModule
],
// ...
})
export class AppModule {}Dynamic Import
If the plugin is loaded dynamically, use loadChildren in your routing module.
TypeScript
import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
const routes: Routes = [
{ path: 'plugin', loadChildren: () => import('path/to/plugin').then(m => m.PluginModule) }
];
@NgModule({
imports: [RouterModule.forRoot(routes)],
exports: [RouterModule]
})
export class AppRoutingModule { }
// Use code with caution.
// Configuring the Plugin:
Plugin Configuration: Provide necessary configuration to the plugin.
TypeScript
import { PluginConfig } from 'path/to/plugin';
@NgModule({
providers: [
{ provide: PluginConfig, useValue: { apiKey: 'yourApiKey' } }
]
})
export class AppModule { }
Error Handling in Plugins
Try-Catch Blocks: Use try-catch blocks to handle exceptions within the plugin.
Custom Error Handling: Create a custom error handling mechanism for the plugin.
Logging: Log errors for debugging purposes.
Error Isolation
Plugin-Specific Error Handling: Handle errors within the plugin itself to prevent affecting the core application.
Error Boundaries: Use Angular's error boundaries to isolate components from errors.
Observables and Error Handling: Use proper error handling techniques with Observables.
TypeScript
import { Component, ErrorHandler } from '@angular/core';
@Component({
// ...
})
export class AppComponent {
constructor(private errorHandler: ErrorHandler) {}
handleError(error: any) {
// Custom error handling logic
this.errorHandler.handleError(error);
}
}SSR can significantly enhance plugin performance by providing initial HTML content, improving SEO, and reducing time to interactive. However, it introduces complexities in plugin development.
Considerations:
Plugin Compatibility: Ensure plugins are compatible with SSR environments.
Data Fetching: Plugins might need to fetch data on the server-side.
State Management: Manage state consistently between server and client.
Dynamic Content: Handle dynamic content generation within the plugin's SSR context.
Error Handling: Implement robust error handling for SSR failures.
TypeScript
// Plugin component
import { Component, OnInit } from '@angular/core';
import { Meta, Title } from '@angular/platform-browser';
@Component({
// ...
})
export class PluginComponent implements OnInit {
constructor(private meta: Meta, private title: Title) {}
ngOnInit() {
// Server-side data fetching or pre-rendering logic
this.meta.addTag({ name: 'description', content: 'Plugin description' });
this.title.setTitle('Plugin Title');
}
}1. Modularity and Reusability
Break down the plugin into smaller, independent components or modules. This enhances maintainability, testability, and potential reuse in other projects.
Implement a robust testing strategy, including unit, integration, and end-to-end tests. Thorough testing ensures plugin reliability and prevents unexpected issues.
3. Clear and Consistent Documentation
Provide detailed documentation covering installation, configuration, usage, and API reference. Well-documented plugins are easier to adopt and maintain.
4. Performance Optimization
Optimize the plugin for performance by minimizing resource usage, leveraging lazy loading, and considering server-side rendering where applicable.
We have learned how to create an Angular modular plugin in this article. We have covered the benefits, architecture, and implementation of plugins in Angular applications. By understanding the core concepts, architecture, and implementation details, we've explored how to create a robust and flexible plugin system within an Angular application.
This approach empowers developers to build modular, maintainable, and extensible applications that can be easily adapted to evolving requirements and incorporate third-party functionalities.
This website uses cookies to analyze website traffic and optimize your website experience. By continuing, you agree to our use of cookies as described in our Privacy Policy.
