Interactive data visualizations are greatly enhanced by combining React with D3. React.js, known for its component-based architecture and efficient virtual DOM rendering, is a popular JavaScript library for building user interfaces. On the other hand, D3.js, or Data-Driven Documents, excels at generating sophisticated and flexible visualizations through direct DOM manipulation based on data.
When integrated, React and D3 play to each other's strengths. React components manage the application's state and U.I. logic, while D3 handles the precise rendering and animation of visual elements. This clear division of responsibilities allows developers to build highly responsive and maintainable data-driven applications.
In practice, data is usually fetched and processed within a React component. Upon readiness, D3 functions are invoked within React’s life-cycle methods, such as useEffect in functional components, to create and update SVG elements. This ensures that D3 manipulations are performed only when necessary, preserving the performance advantages of React’s virtual DOM.
In essence, combining React.js with D3.js provides a robust and flexible framework for developing modern data visualizations. It merges the declarative U.I. management of React with the detailed control offered by D3, enabling developers to craft rich, interactive, and maintainable visual representations of data.
This fusion of React and D3 capitalizes on their respective strengths. React components oversee application state and U.I. logic, while D3 manages the complex rendering and animation of visual components. This division of labor empowers developers to construct highly responsive and maintainable data-driven applications.
The combination of React.js with D3.js furnishes developers with a robust and adaptable framework for crafting dynamic data visualizations.
React.js is a great choice for data visualization projects because it's versatile, fast, and widely supported. With React, developers can easily create reusable components for different parts of their visualizations, which saves time and keeps code organized.
React's virtual DOM ensures that even with lots of data, your visualizations stay smooth and responsive. Plus, its simple syntax makes it easy to add interactive elements like charts and graphs without getting bogged down in complex code.
There are also lots of libraries and tools available for React that are specifically designed for data visualization, so you can find the right tools for a specific point in your project without any difficulty.
And because React is so popular, there's a huge community of developers out there sharing tips, tutorials, and resources. So if you run into any problems, you're likely to find help quickly.
In short, React.js simplifies the process of creating dynamic and engaging data visualizations, making it a top choice for developers tackling these projects.
D3.js, short for Data-Driven Documents, is a JavaScript library utilized for creating dynamic, interactive data visualizations in web browsers. Developed by Mike Bostock in 2011, D3.js has become a foundation in the field of data visualization due to its flexibility, power, and ability to enable developers to bind data to graphical elements in the Document Object Model (DOM) of an HTML page.
At its core, D3.js provides a set of tools for manipulating documents based on data. Its key strength lies in its data-binding capabilities, allowing developers to link data to a Document Object Model (DOM), and then apply data-driven transformations to the document. This means that developers can easily represent data visually through a variety of chart types, such as bar charts, line charts, scatter plots, and more, with each element of the visualization dynamically responding to changes in the underlying data.
One of the most significant aspects of D3.js is its emphasis on web standards like HTML, SVG, and CSS. By leveraging these standards, D3.js enables developers to create highly customizable and scalable visualizations directly within the web browser, without relying on proprietary plugins or frameworks.
The importance of D3.js in data visualization cannot be overstated. It empowers developers and designers to craft bespoke, interactive visualizations tailored to their specific data and design requirements. Its open-source nature fosters a vibrant community of developers contributing to its ecosystem, ensuring continuous improvement and innovation.
Furthermore, D3.js plays a crucial role in democratizing data visualization, making it accessible to a wider audience. Its extensive documentation, numerous tutorials, and active community support lower the barrier to entry for individuals looking to learn data visualization.
In the realm of web development, React.js and D3.js stand as excellent in their respective domains. React.js, with its component-based architecture, simplifies building dynamic user interfaces, while D3.js empowers developers with data visualization capabilities. Integrating these two powerful libraries unlocks a world of possibilities for modern browsers, enabling developers to create interactive and visually compelling data-driven applications.
However, setting up the environment for React.js and D3.js integration requires careful consideration to ensure smooth interoperability. Here's a simple example comprehensive guide to help you seamlessly set up your environment for integrating D3.js with React.js.
npx create-react-app my-app
cd my-app
npm install d3Plan your component structure thoughtfully. Determine which components will handle data fetching and visualization.
Decide how you'll handle data within your React components. You can fetch data from APIs using tools like fetch or Axios and manage it using React's state or a state management library like Redux.
Use the useEffect hook to initialize D3.js code when the component mounts or updates:
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const MyD3Component = ({ data }) => {
const svgRef = useRef();
useEffect(() => {
const svg = d3.select(svgRef.current);
// D3.js code to create visualization using 'data' and 'svg'
}, [data]);
return <svg ref={svgRef}></svg>;
};
export default MyD3Component;Utilize React's ref to reference SVG elements within your D3.js code:
useEffect(() => {
const svg = d3.select(svgRef.current);
svg.selectAll('*').remove(); // Clear existing elements
// D3.js code to create or update visualization using 'data' and 'svg'
}, [data]);Implement mechanisms to handle updates to your data and visualizations. React's state management facilitates re-rendering components efficiently when data changes.
Test your application to ensure functionality and performance. Optimize where necessary to maintain smooth interactions and responsiveness.
Leverage the vast resources available in the React and D3.js communities. Tutorials, documentation, and forums can provide valuable insights and solutions to common integration challenges.
D3.js utilizes the concept of data binding, a select method where data is joined with DOM elements to create dynamic visualizations.
In React.js, you can leverage D3's data binding methods, such as selectAll, data, and enter, to bind data to React components.
D3's powerful manipulation functions, like select, append, attr, and style, can be used within React components to dynamically move data values and update the DOM based on data changes.
This allows for the creation of complex visualizations within React components while keeping the U.I. reactive.
D3.js provides a data array and robust transition methods for smoothly animating changes to the DOM.
By incorporating D3's transition capabilities into React components, you can create fluid animations in response to data updates.
D3.js offers event-handling functionality for interacting with visualizations, using mouse events such as mouse clicks or hover effects.
React components can listen for these D3 events and update component states accordingly, enabling interactive data visualizations.
When using D3.js with React.js, it's important to optimize performance, especially when dealing with large datasets.
Strategies like virtualization, and memoization, can help minimize unnecessary renders and improve overall performance.
Example Code Snippet:
import React, { useRef, useEffect } from 'react';
import * as d3 from 'd3';
const BarChart = ({ data }) => {
const svgRef = useRef();
useEffect(() => {
const svg = d3.select(svgRef.current);
svg
.selectAll('rect')
.data(data)
.enter()
.append('rect')
.attr('x', (d, i) => i * 50)
.attr('y', (d) => 150 - d)
.attr('width', 40)
.attr('height', (d) => d)
.attr('fill', 'blue');
}, [data]);
return <svg ref={svgRef}></svg>;
};
export default BarChart;In this example, we create a simple bar chart component using D3.js within a React component. The data prop is bound to the height of div element of each bar, and the chart is dynamically updated whenever the data changes.
By integrating D3.js with React.js, developers can leverage the strengths of both libraries to create dynamic and interactive data visualizations in web applications.
D3.js offers a comprehensive toolbox for crafting various chart types, each suited to specific data set exploration goals. Here's a dive into some of the most popular options:
Line Charts: Line charts excel at showcasing trends or relationships between continuous variables, especially when examining data points across time. D3.js empowers developers to map data points to SVG paths, precisely adjust scales for axes, and incorporate smooth transitions for captivating presentations.
Bar Charts: Bar charts are the go-to choice for effectively comparing values across distinct categories. Using D3.js, developers can effortlessly associate data with SVG rectangles, leverage scales for precise positioning, and integrate clear axis labels to ensure optimal comprehension.
Pie Charts: Pie charts are ideal for describing proportions within a complete dataset. D3.js streamlines pie chart creation by generating SVG arcs based on data points, utilizing color scales for differentiation, and integrating text labels for enhanced clarity.
Scatter Plots: Scatter plots are instrumental in visualizing relationships between two continuous variables. With D3.js, developers can create scatter plots by mapping data points to SVG circles, fine-tuning scales for precise positioning, and enhancing the user experience with interactive tooltips.
Area Charts: Similar to line charts, area charts excel at emphasizing increasing totals over time. D3.js simplifies area chart construction by mapping data points to SVG areas, meticulously adjusting scales for accuracy, and incorporating transitions for seamless animations.
Histograms: Histograms provide a clear view of how a single continuous variable is distributed across various bins or intervals. D3.js empowers developers to create histograms by aggregating data into bins, rendering SVG rectangles for each bin, and precisely adjusting scales for optimal precision.
Heatmaps: Heatmaps leverage color to visually represent data density or intensity. D3.js enables developers to craft heatmaps by mapping data to a grid of SVG rectangles, applying color scales strategically, and incorporating tooltips to enhance user understanding.
Radar Charts: Radar charts, also known as spider or star charts, are effective for comparing multiple variables across different categories. D3.js facilitates radar chart generation by rendering SVG polygons based on data, adjusting scales for accuracy, and integrating clear axis labels for contextual understanding.
Beyond the Chart: Crafting Custom Visualizations
The true power of D3.js lies in its ability to craft custom visualizations tailored to specific data and requirements. By leveraging D3's features for data binding, manipulation, and DOM interaction, developers can now create engaging, unique, and insightful visuals that effectively communicate data stories and capture user engagement.
By mastering these chart types and techniques, developers can unlock the full potential of D3.js to create compelling and interactive visualizations and engaging charts that transform data into clear and engaging stories.
Let's understand how to build charts using d3.js.
Crafting data visualizations is a common requirement in web applications. This provides combining the strengths of React and D3.js. We can use a linear scale to map the population data per data point to the height of the bars and an ordinal scale to map the country names to the x-axis. We'll walk through building bar charts and line graphs, equipping you with the foundational knowledge and code snippets to get started.
Let's begin with a simple bar chart. D3.js will handle data manipulation, while React takes care of rendering.
BarChart Component: Create a BarChart component within your src directory. This component will handle the chart's creation and rendering.
BarChart Implementation: Here's the code for the BarChart.js file, utilizing React hooks for state management and D3 for data visualization.
// src/components/BarChart.js
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const BarChart = ({ data }) => {
const ref = useRef();
useEffect(() => {
const svg = d3.select(ref.current);
const width = 500;
const height = 300;
const margin = { top: 20, right: 30, bottom: 40, left: 40 };
svg.attr('width', width).attr('height', height);
// Create scales for x and y axes
const x = d3.scaleBand()
.domain(data.map(d => d.name))
.range([margin.left, width - margin.right])
.padding(0.1);
const y = d3.scaleLinear()
.domain([0, d3.max(data, d => d.value)])
.nice()
.range([height - margin.bottom, margin.top]);
// Create and position bars
svg.append('g')
.attr('fill', 'steelblue')
.selectAll('rect')
.data(data)
.join('rect')
.attr('x', d => x(d.name))
.attr('y', d => y(d.value))
.attr('height', d => y(0) - y(d.value))
.attr('width', x.bandwidth());
// Add axes
svg.append('g')
.call(d3.axisLeft(y))
.attr('transform', `translate(${margin.left},0)`);
svg.append('g')
.call(d3.axisBottom(x))
.attr('transform', `translate(0,${height - margin.bottom})`);
}, [data]);
return <svg ref={ref}></svg>;
};
export default BarChart;
Using BarChart Component: Import and utilize the BarChart component in your App.js file to render the chart with your data.
// src/App.js
import React from 'react';
import BarChart from './components/BarChart';
const data = [
{ name: 'A', value: 30 },
{ name: 'B', value: 80 },
{ name: 'C', value: 45 },
{ name: 'D', value: 60 },
{ name: 'E', value: 20 },
{ name: 'F', value: 90 },
{ name: 'G', value: 55 },
];
const App = () => {
return (
<div className="App">
<h1>Bar Chart with React and D3</h1>
<BarChart data={data} />
</div>
);
};

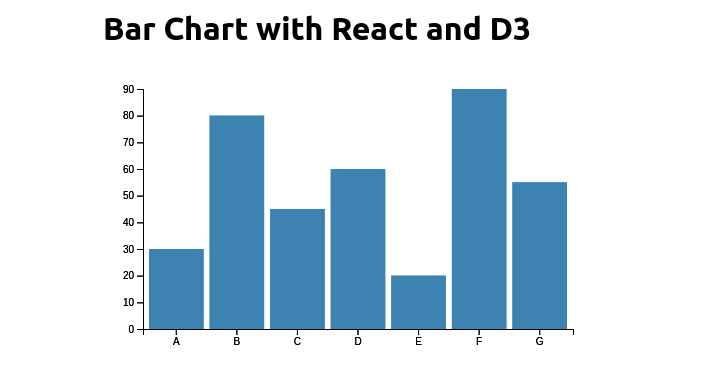

export default App;The output is shown below.
Next, let's create a line graph. We'll follow a similar pattern, creating a new component for the line graph.
LineGraph Component: Create a LineGraph component in your src directory.
// src/components/LineGraph.js
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const LineGraph = ({ data }) => {
const ref = useRef();
useEffect(() => {
const svg = d3.select(ref.current);
const width = 500;
const height = 300;
const margin = { top: 20, right: 30, bottom: 40, left: 40 };
svg.attr('width', width).attr('height', height);
const x = d3.scaleTime()
.domain(d3.extent(data, d => d.date))
.range([margin.left, width - margin.right]);
const y = d3.scaleLinear()
.domain([0, d3.max(data, d => d.value)])
.nice()
.range([height - margin.bottom, margin.top]);
const line = d3.line()
.x(d => x(d.date))
.y(d => y(d.value));
svg.append('path')
.datum(data)
.attr('fill', 'none')
.attr('stroke', 'steelblue')
.attr('stroke-width', 1.5)
.attr('d', line);
svg.append('g')
.call(d3.axisLeft(y))
.attr('transform', `translate(${margin.left},0)`);
svg.append('g')
.call(d3.axisBottom(x).ticks(width / 80).tickSizeOuter(0))
.attr('transform', `translate(0,${height - margin.bottom})`);
}, [data]);
return <svg ref={ref}></svg>;
};
export default LineGraph;Using the LineGraph Component: Import and use the LineGraph component in your App.js.
// src/App.js
import React from 'react';
import LineGraph from './components/LineGraph';
const App = () => {
const data = [
{ date: new Date(2020, 0, 1), value: 30 },
{ date: new Date(2020, 1, 1), value: 50 },
{ date: new Date(2020, 2, 1), value: 80 },
{ date: new Date(2020, 3, 1), value: 60 },
{ date: new Date(2020, 4, 1), value: 90 },
{ date: new Date(2020, 5, 1), value: 70 },
];
return (
<div className="App">
<h1>Line Graph with React and D3</h1>
<LineGraph data={data} />
</div>
);
};

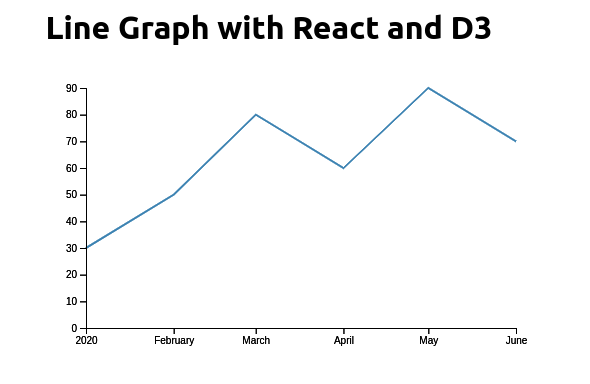

export default App;The output is shown below.
Pie charts and donut charts are great ways to both visualize data and proportions within a dataset. Using React with D3.js, we can create interactive and dynamic visualizations that are easy to integrate into any React application. In this guide, we'll walk through the process of creating both pie charts and donut charts using React and D3.js.
Import Necessary Libraries:
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const PieChart = ({ data }) => {
const ref = useRef();
useEffect(() => {
const width = 450;
const height = 450;
const margin = 40;
const radius = Math.min(width, height) / 2 - margin;
const svg = d3
.select(ref.current)
.attr('width', width)
.attr('height', height)
.append('g')
.attr('transform', `translate(${width / 2}, ${height / 2})`);
const color = d3
.scaleOrdinal()
.domain(data.map((d) => d.label))
.range(d3.schemeSet2);
const pie = d3.pie().value((d) => d.value);
const data_ready = pie(data);
const arc = d3.arc().innerRadius(0).outerRadius(radius);
svg
.selectAll('pieces')
.data(data_ready)
.enter()
.append('path')
.attr('d', arc)
.attr('fill', (d) => color(d.data.label))
.attr('stroke', 'black')
.style('stroke-width', '2px')
.style('opacity', 0.7);
// Adding labels
svg
.selectAll('text')
.data(data_ready)
.enter()
.append('text')
.text((d) => d.data.label)
.attr('transform', (d) => `translate(${arc.centroid(d)})`)
.style('text-anchor', 'middle')
.style('font-size', '10px');
}, [data]);
return <svg ref={ref}></svg>;
};
export default PieChart;
Using the Pie Chart Component:
import React from 'react';
import ReactDOM from 'react-dom';
import PieChart from './PieChart';
const data = [
{ label: 'A', value: 30 },
{ label: 'B', value: 70 },
{ label: 'C', value: 50 },
{ label: 'D', value: 20 },
];
const App = () => (
<div>
<h1>Pie Chart Example</h1>
<PieChart data={data} />
</div>
);

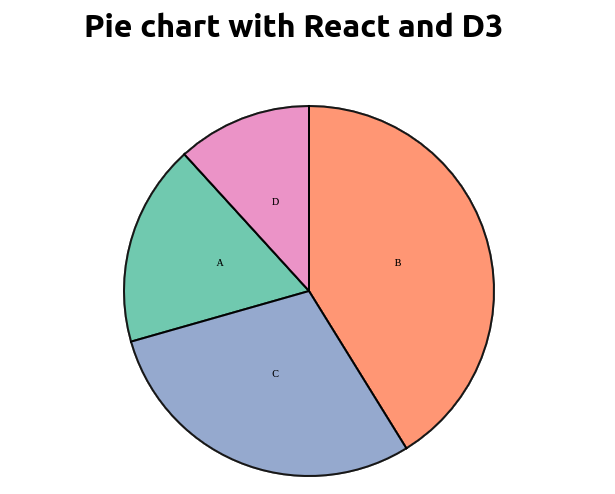

ReactDOM.render(<App />, document.getElementById('root'));The output is shown below.

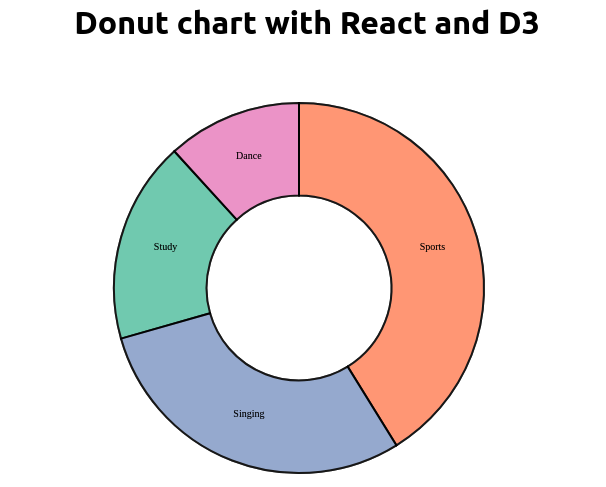

To create a donut chart, we will modify the innerRadius of the arc generator.
// Donut Chart Component:
import React, { useRef, useEffect } from 'react';
import * as d3 from 'd3';
const DonutChart = ({ data }) => {
const ref = useRef();
useEffect(() => {
const width = 450;
const height = 450;
const margin = 40;
const radius = Math.min(width, height) / 2 - margin;
const svg = d3
.select(ref.current)
.attr('width', width)
.attr('height', height)
.append('g')
.attr('transform', `translate(${width / 2}, ${height / 2})`);
const color = d3
.scaleOrdinal()
.domain(data.map((d) => d.label))
.range(d3.schemeSet2);
const pie = d3.pie().value((d) => d.value);
const data_ready = pie(data);
const arc = d3
.arc()
.innerRadius(radius * 0.5)
.outerRadius(radius);
svg
.selectAll('pieces')
.data(data_ready)
.enter()
.append('path')
.attr('d', arc)
.attr('fill', (d) => color(d.data.label))
.attr('stroke', 'black')
.style('stroke-width', '2px')
.style('opacity', 0.7);
// Adding labels
svg
.selectAll('text')
.data(data_ready)
.enter()
.append('text')
.text((d) => d.data.label)
.attr('transform', (d) => `translate(${arc.centroid(d)})`)
.style('text-anchor', 'middle')
.style('font-size', '10px');
}, [data]);
return <svg ref={ref}></svg>;
};
export default DonutChart;Using the Donut Chart Component:
import React from 'react';
import ReactDOM from 'react-dom';
import DonutChart from './DonutChart';
const data = [
{ label: 'A', value: 30 },
{ label: 'B', value: 70 },
{ label: 'C', value: 50 },
{ label: 'D', value: 20 },
];
const App = () => (
<div>
<h1>Donut Chart Example</h1>
<DonutChart data={data} />
</div>
);
ReactDOM.render(<App />, document.getElementById('root'));The output is shown below.
Scatter plots and bubble charts make data analysis easier! These charts, along with D3.js and React.js, let you build interactive visualizations that are both informative and visually engaging. Let's explore how to create them.
Step 1: Basic Component Setup
Create a new component called ScatterPlot.js. This will be where we set up our D3 scatter plot.
// src/components/ScatterPlot.js
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const ScatterPlot = ({ data }) => {
const svgRef = useRef();
useEffect(() => {
const svg = d3.select(svgRef.current);
const width = 500;
const height = 500;
const margin = { top: 20, right: 20, bottom: 30, left: 40 };
svg
.attr('width', width)
.attr('height', height)
.style('background', '#f0f0f0')
.style('margin', '50px')
.style('overflow', 'visible');
const x = d3.scaleLinear().domain([0, 100]).range([margin.left, width - margin.right]);
const y = d3.scaleLinear().domain([0, 100]).range([height - margin.bottom, margin.top]);
svg
.append('g')
.attr('transform', `translate(0, ${height - margin.bottom})`)
.call(d3.axisBottom(x));
svg
.append('g')
.attr('transform', `translate(${margin.left}, 0)`)
.call(d3.axisLeft(y));
svg
.selectAll('circle')
.data(data)
.enter()
.append('circle')
.attr('cx', d => x(d.x))
.attr('cy', d => y(d.y))
.attr('r', 5)
.attr('fill', 'blue');
}, [data]);
return <svg ref={svgRef}></svg>;
};
export default ScatterPlot;Step 2: Integrating Scatter Plot Component
In your App.js, integrate the ScatterPlot component and pass some sample data to it.
// src/App.js
import React from 'react';
import ScatterPlot from './components/ScatterPlot';
const data = [
{ x: 30, y: 20 },
{ x: 85, y: 60 },
{ x: 50, y: 80 },
{ x: 20, y: 50 },
{ x: 90, y: 90 },
];
const App = () => {
return (
<div>
<h1>Scatter Plot with D3 and React</h1>
<ScatterPlot data={data} />
</div>
);
};

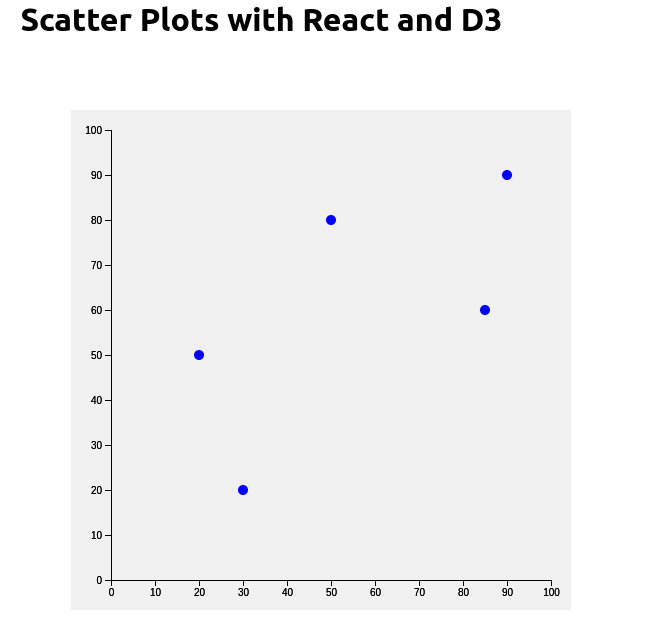

export default App;The output is shown below.
A bubble chart is essentially a scatter plot with an added dimension: the size of the circles.
Step 1: Bubble Chart Component
Create a new component called BubbleChart.js.
// src/components/BubbleChart.js
import React, { useEffect, useRef } from 'react';
import * as d3 from 'd3';
const BubbleChart = ({ data }) => {
const svgRef = useRef();
useEffect(() => {
const svg = d3.select(svgRef.current);
const width = 500;
const height = 500;
const margin = { top: 20, right: 20, bottom: 30, left: 40 };
svg
.attr('width', width)
.attr('height', height)
.style('background', '#f0f0f0')
.style('margin', '50px')
.style('overflow', 'visible');
const x = d3.scaleLinear().domain([0, 100]).range([margin.left, width - margin.right]);
const y = d3.scaleLinear().domain([0, 100]).range([height - margin.bottom, margin.top]);
const r = d3.scaleSqrt().domain([0, 100]).range([0, 20]);
svg
.append('g')
.attr('transform', `translate(0, ${height - margin.bottom})`)
.call(d3.axisBottom(x));
svg
.append('g')
.attr('transform', `translate(${margin.left}, 0)`)
.call(d3.axisLeft(y));
svg
.selectAll('circle')
.data(data)
.enter()
.append('circle')
.attr('cx', d => x(d.x))
.attr('cy', d => y(d.y))
.attr('r', d => r(d.value))
.attr('fill', 'blue')
.attr('opacity', 0.7);
}, [data]);
return <svg ref={svgRef}></svg>;
};
export default BubbleChart;Step 2: Integrating Bubble Chart Component
Now, integrate the BubbleChart component in your App.js.
// src/App.js
import React from 'react';
import BubbleChart from './components/BubbleChart';
const bubbleData = [
{ x: 30, y: 20, value: 10 },
{ x: 85, y: 60, value: 50 },
{ x: 50, y: 80, value: 30 },
{ x: 20, y: 50, value: 40 },
{ x: 90, y: 90, value: 70 },
];
const App = () => {
return (
<div>
<h1>Bubble Chart with D3 and React</h1>
<BubbleChart data={bubbleData} />
</div>
);
};

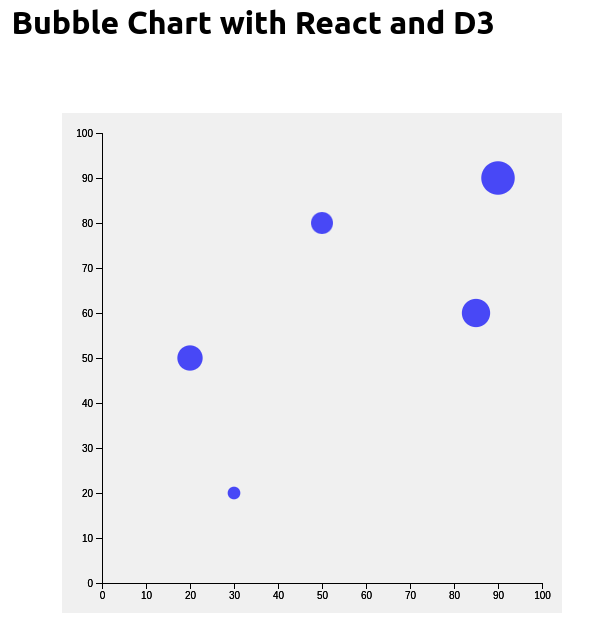

export default App;The output is shown below.
In conclusion, integrating React and D3.js capitalizes on the strengths of each framework. React manages the application's overall structure and state, ensuring a consistent and predictable UI. D3 excels at rendering and updating visual elements, creating powerful and precise visualizations. This separation of concerns keeps the codebase clean and manageable. By encapsulating visualization logic within d3 js and React components, developers can leverage React's declarative style for modular and maintainable code. This powerful combination allows developers to craft interactive and informative data visualizations.
This website uses cookies to analyze website traffic and optimize your website experience. By continuing, you agree to our use of cookies as described in our Privacy Policy.
